德國HYDRO-BIOS公司——浮游生物多聯采樣網

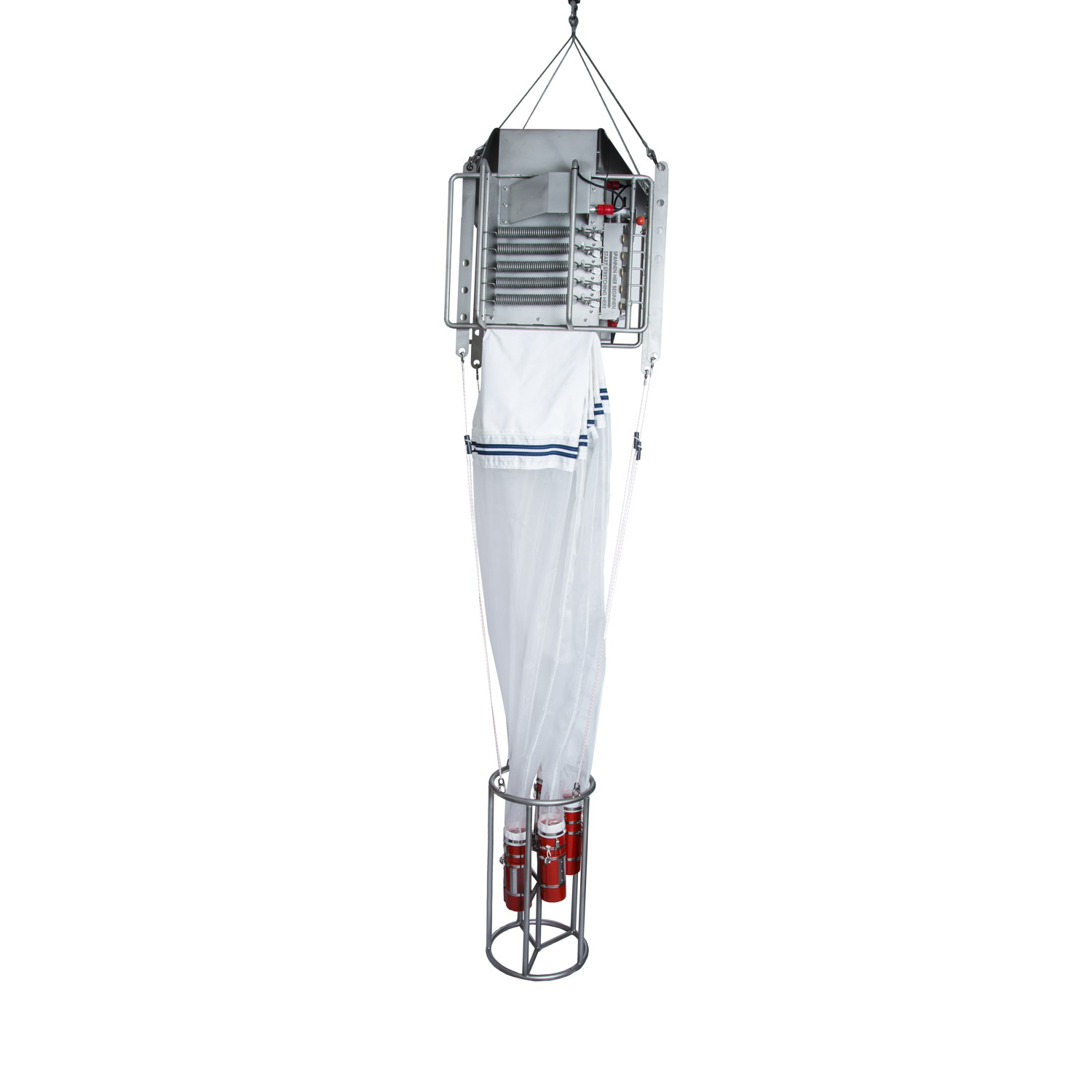

 浮游生物連續采樣網MultiNet^?
Multi Plankton Sampler MultiNet^?

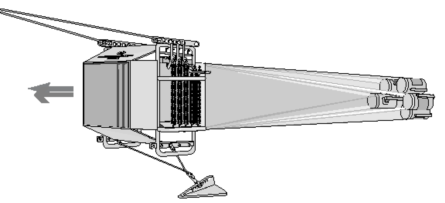

           水平操作狀態                                                                                            OceanLab軟件

MultiNet^?浮游生物采樣網介紹：

MultiNet^?浮游生物采樣網是一款浮游生物自動采樣器，浮游生物采樣網可以在連續的水層中進行水平采樣和垂直采樣。每個MultiNet^?浮游生物采樣網安裝5只（9只）網袋。MultiNet^?浮游生物采樣網開口面積：Mini型，0.125m²；Midi型，0.25m²，Maxi型，0.5m²；Mammoth型，1m²。MultiNet^?浮游生物采樣網的整個系統由甲板控制單元、水下控制單元、不銹鋼框架、網衣、網底管等組成，5（9）只網袋通過拉鏈連接器連接在不銹鋼框架的帆布部分上。

MultiNet^?浮游生物采樣網網袋的開啟與關閉是通過一個電池驅動的馬達單元激發的?？刂凭W(wǎng)袋開關的指令是通過甲板控制單元和水下單元之間的單芯和多芯電纜傳輸?shù)?。我們可以提供各種網袋，適用于各種標準的和非標準的應用場合。對于常規的水平采樣操作，我們推薦您使用孔徑為300微米（孔徑從100微米至500微米都是可選的）的網袋；對于垂直采樣來說，網孔大小從55微米到500微米都是適用的。

MultiNet?浮游生物采樣網的水下單元中集成一個壓力傳感器，深度和所有其他系統相關數據會一起在甲板控制單元的液晶顯示屏上顯示。水下單元上可以安裝兩個帶有角度補償功能的電子網口流量計：一個裝在水下單元的開口內，用于測定通過網口的水量；另一個裝在水下單元開口外，用于測定“堵塞效應”。

在水平采樣操作中，MultiNet?浮游生物采樣網安裝了一個V-Fin深度抑制器；在垂直采樣操作時，一個不銹鋼支撐安裝在網底管固定器上，以便垂直采樣時，采樣網能夠安全迅速地降到所需的深度。

MultiNet^?浮游生物連續采樣網設備特點：

√水平操作和垂直操作

√容易操作
√雙向通訊
√標準深度3000米，可選工作深度6000米，11000米
√長距離FSK自動測量記錄傳導
√電量消耗低

√電池供電的水下單元
√EC-認證(CE)EN 50081-1,EN 50082-1
√操作溫度范圍-40℃ ~ +85℃

MultiNet^?浮游生物連續采樣網的操作：

在初始位置的時候，MultiNet^?浮游生物連續采樣網上的所有網袋是關閉的。水流可以很自由地流過浮游生物連續采樣網的框架，并允許采樣器以合適的速度降到期望的深度，然后按下甲板單元上的按鈕，可以使第1個網袋打開，當操作結束時，可以通過第2個指令將其關閉。在第1個網袋關閉的同時，第2個網袋會接著打開，當甲板單元顯示激活的網袋號碼時，這些網袋會重復以上過程。在操作Mini型和Midi型MultiNet^?浮游生物連續采樣網時，第5個網袋保持敞開狀態，MultiNet^?浮游生物連續采樣網會收集從期望深度到表層的浮游生物。在操作Maxi型和Mammoth型MultiNet^?浮游生物連續采樣網時，第9個網袋可以在到達水面之前閉合。

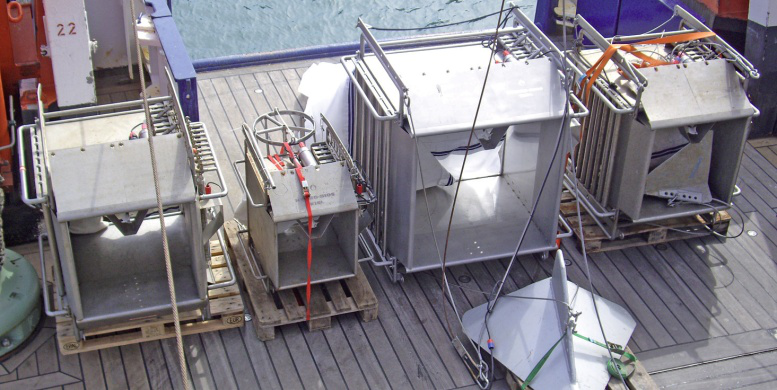

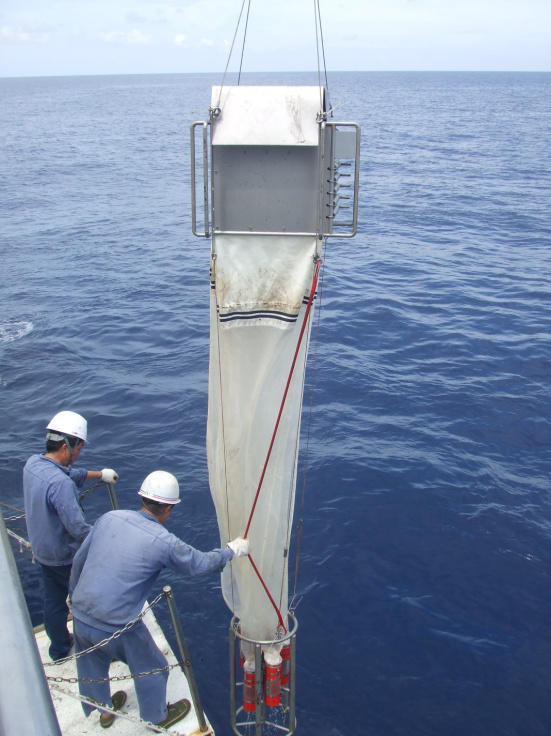

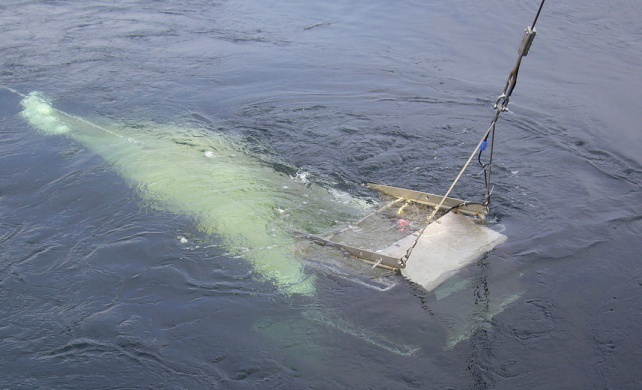

   MultiNet浮游生物連續采樣網入水姿態                        MultiNet浮游生物連續采樣網整裝待發

MultiNet^?浮游生物連續采樣網與CT組件：

MultiNet^?浮游生物連續采樣網與CT組件結合在一起，擁有一臺CTD（溫鹽深儀）的完整功能。CT組件由一個電導率傳感器，一個溫度傳感器和一塊附加電路板組成，它們集成在MultiNet^?浮游生物連續采樣網的馬達驅動單元中。根據UNESCO公式，系統可以從獲得的CTD數據，計算出鹽度、密度和聲速等指標。

MultiNet^?浮游生物連續采樣網的額外選擇：
√各種參數的傳感器，如鹽度、溫度、葉綠素a、濁度、姿態傳感器等

√電池供電的手持終端，當在線操作沒有交流電供電時，用來代替甲板控制單元
√MultiNet^?浮游生物連續采樣網有適用于6000米和11000米采樣的特殊型號

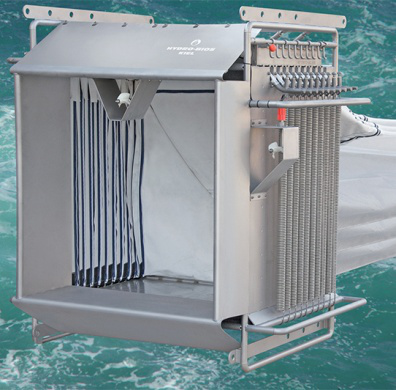

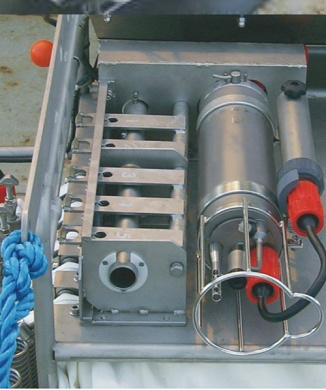

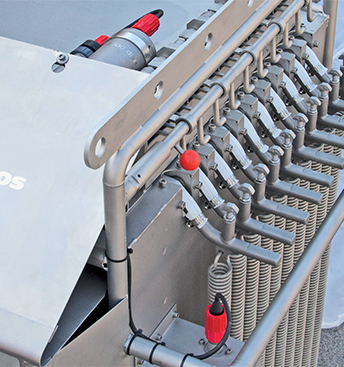

MultiNet^?浮游生物連續采樣網細節展示：

MultiNet^?浮游生物連續采樣網技術參數：

浮游生物連續采樣網MultiNet傳感器技術參數

 四款浮游生物連續采樣網MultiNet^?詳細技術參數對比表

資料下載：

德國HYDRO-BIOS公司浮游生物連續采樣網介紹.pdf

水德產品冊.pdf

相關新聞鏈接：

水德多聯網和多管采泥器助力“實驗6”采樣任務

薦書| 碧海揚帆——太平洋、印度洋觀測與科考隨筆

國外應用代表文獻：

1.Anna Schukat, Lena Teuber, Wilhelm Hagen, Norbert Wasmund, Holger Auel,2013.Energetics and carbon budgets of dominant calanoid copepods in the northern Benguela upwelling system.Journal of Experimental Marine Biology and Ecology.442:1-9.

2.Silke Laakmann, Holger Auel, Marc Kochzius,2012.Evolution in the deep sea: Biological traits, ecology and phylogenetics of pelagic copepods.Molecular Phylogenetics and Evolution.65(2):535–546.

3.Jessica R. Frost, Anneke Denda, Clive J. Fox, Charles A. Jacoby, Rolf Koppelmann, Morten Holtegaard Nielsen, Marsh J. Youngbluth,2012.Distribution and trophic links of gelatinous zooplankton on Dogger Bank, North Sea.Marine Biology.159(2):239-253.

4.Cornelia Jaspers, Lene Friis M?ller, Thomas Ki?rboe,2011.Salinity Gradient of the Baltic Sea Limits the Reproduction and Population Expansion of the Newly Invaded Comb Jelly Mnemiopsis leidyi.PLoS One.6(8):e24065.

5.Nikolaj G. Andersen, Torkel Gissel Nielsen, Hans Henrik Jakobsen, Peter Munk, Lasse Riemann,2011.Distribution and production of plankton communities in the subtropical convergence zone of the Sargasso Sea. II. Protozooplankton and copepods.Marine Ecology. Progress series.426:71-86.

6.Silke Laakmann, Holger Auel,2010.Longitudinal and vertical trends in stable isotope signatures (δ13C and δ15N) of omnivorous and carnivorous copepods across the South Atlantic Ocean.Marine Biology.157(3):463-471.

7.JANNE E. S?REIDE, EVA LEU, J?RGEN BERGE, MARTIN GRAEVE, STIG FALK-PETERSEN,2010.Timing of blooms, algal food quality and Calanus glacialis reproduction and growth in a changing Arctic.Global Change Biology.16(11):3154–3163.

8.Vijayalakshmi R. Nair, R. Gireesh,2010.Biodiversity of chaetognaths of the Andaman Sea, Indian Ocean.Deep Sea Research Part II: Topical Studies in Oceanography.57(24–26):2135–2147.

9.C.R. Asha Devi, R. Jyothibabu, P. Sabu, Josia Jacob, H. Habeebrehman, M.P. Prabhakaran, K.J. Jayalakshmi, C.T. Achuthankutty,2010.Seasonal variations and trophic ecology of microzooplankton in the southeastern Arabian Sea.Continental Shelf Research.30(9):1070–1084.

10.Holger Auel, Werner Ekau,2009.Distribution and respiration of the high-latitude pelagic amphipod Themisto gaudichaudi in the Benguela Current in relation to upwelling intensity.Progress in Oceanography.83(1–4):237–241.

11.Silke Laakmann, Meike Stumpp, Holger Auel,2009.Vertical distribution and dietary preferences of deep-sea copepods (Euchaetidae and Aetideidae; Calanoida) in the vicinity of the Antarctic Polar Front.Polar Biology.32(5):679-689.

12.Anne Lebourges-Dhaussy, Janet Coetzee, Larry Hutchings, Gildas Roudaut and Cornelia Nieuwenhuys,2009.Zooplankton spatial distribution along the South African coast studied by multifrequency acoustics, and its relationships with environmental parameters and anchovy distribution.ICES Journal of Marine Science.66(6):1055-1062.

13.Olli Urpanen, Timo J. Marjom?ki, Markku Viljanen, Hannu Huuskonen, Juha Karjalainen,2009.Population size estimation of larval coregonids in large lakes: Stratified sampling design with a simple prediction model for vertical distribution.Fisheries Research.96(1):109–117.

14.Silke Laakmann, Marc Kochzius, Holger Auel,2009.Ecological niches of Arctic deep-sea copepods: Vertical partitioning, dietary preferences and different trophic levels minimize inter-specific competition.Deep Sea Research Part I: Oceanographic Research Papers.56(5):741–756.

15.Veronica Fernandes, N. Ramaiah,2009.Mesozooplankton community in the Bay of Bengal (India): spatial variability during the summer monsoon.Aquatic Ecology.43(4):951-963.

16.Marina E. Sabatini,2008.Life history trends of copepods Drepanopus forcipatus (Clausocalanidae) and Calanus australis (Calanidae) in the southern Patagonian shelf (SW Atlantic).Journal of Plankton Research.30(9):981-996.

17.Katarzyna Blachowiak-Samolyk, Slawek Kwasniewski, Haakon Hop and Stig Falk-Petersen,2008.Magnitude of mesozooplankton variability: a case study from the Marginal Ice Zone of the Barents Sea in spring.Journal of Plankton Research.30(3):311-323.

18.H. Habeebrehman, M.P. Prabhakaran, Josia Jacob, P. Sabu, K.J. Jayalakshmi, C.T. Achuthankutty, C. Revichandran,2008.Variability in biological responses influenced by upwelling events in the Eastern Arabian Sea.Journal of Marine Systems.74(1–2):545–560.

19.Martin O. Macnaughton, Jonas Thormar, J?rgen Berge,2007.Sympagic amphipods in the Arctic pack ice: redescriptions of Eusirus holmii Hansen, 1887 and Pleusymtes karstensi (Barnard, 1959).Polar Biology.30(8):1013-1025.

20.Holger Auel, Hans M. Verheye,2007.Hypoxia tolerance in the copepod Calanoides carinatus and the effect of an intermediate oxygen minimum layer on copepod vertical distribution in the northern Benguela Current upwelling system and the Angola–Benguela Front.Journal of Experimental Marine Biology and Ecology.352(1):234–243.

21."Katarzyn Blachowiak-Samolyk, Slawek Kwasniewski, Katherine Richardson,

Katarzyna Dmoch, Edmond Hansen, Haakon Hop, Stig Falk-Petersen,

Lone Thybo Mouritsen",2006.Arctic zooplankton do not perform diel vertical migration (DVM) during periods of midnight sun.Marine Ecology Progress series.308:101–116.

22.Heino Fock & Hans-Christian John,2006.Fish larval patterns across the Reykjanes Ridge.Marine Biology Research.2(3):191-199.

23.FOSSHEIM Maria, MENG ZHOU, TANDE Kurt S., PEDERSEN Ole-Petter, YIWU ZHU, EDVARDSEN Are,2005.Interactions between biological and environmental structures along the coast of northern Norway.Marine Ecology Progress series.300:147-158.

24.Brierley, Andrew S., Boyer, David C., Axelson, Bjorn Erik, Lynam, Christopher P., Sparks, Conrad A.J., Boyer, Helen, Gibbons, Mark J.,2005.Towards the acoustic estimation of jellyfish abundance.Marine Ecology Progress Series.295: 105-111.

25.Gustavo Alvarez Colombo, Hermes Mianzan and Adrian Madirolas,2003.Acoustic characterization of gelatinous plankton aggregations: four case studies from the Argentine continental shelf.Journal of Marine Science.60(3):650-657.

26.Holger Auel, Iris Werner,2003.Feeding, respiration and life history of the hyperiid amphipod Themisto libellula in the Arctic marginal ice zone of the Greenland Sea.Journal of Experimental Marine Biology and Ecology.296(2):183–197.

27.Elisabeth Halvorsen, Kurt S. Tande, Are Edvardsen, Dag Slagstad, Ole Petter Pedersen,2003.Habitat selection of overwintering Calanus finmarchicus in the NE Norwegian Sea and shelf waters off Northern Norway in 2000–02.Fisheries Oceanography.12(4-5):339–351.

28.S. Sundby, A. J. Boyd, L. Hutchings, M. J. O'Toole, K. Thorisson & A. Thorsen,2001.Interaction between Cape hake spawning and the circulation in the northern Benguela upwelling ecosystem.South African Journal of Marine Science.23(1):317-336.

29.H.G. Fransz, S.R. Gonzalez,1997.Latitudinal metazoan plankton zones in the antarctic circumpolar current along 6°W during austral spring 1992.Deep Sea Research Part II: Topical Studies in Oceanography.44(1–2):395–414.

30.Jürgen Lenz, Alvaro Morales, Judith Gunkel,1993.Mesozooplankton standing stock during the North Atlantic spring bloom study in 1989 and its potential grazing pressure on phytoplankton: a comparison between low, medium and high latitudes.Deep Sea Research Part II: Topical Studies in Oceanography.40(1–2):559–572.
